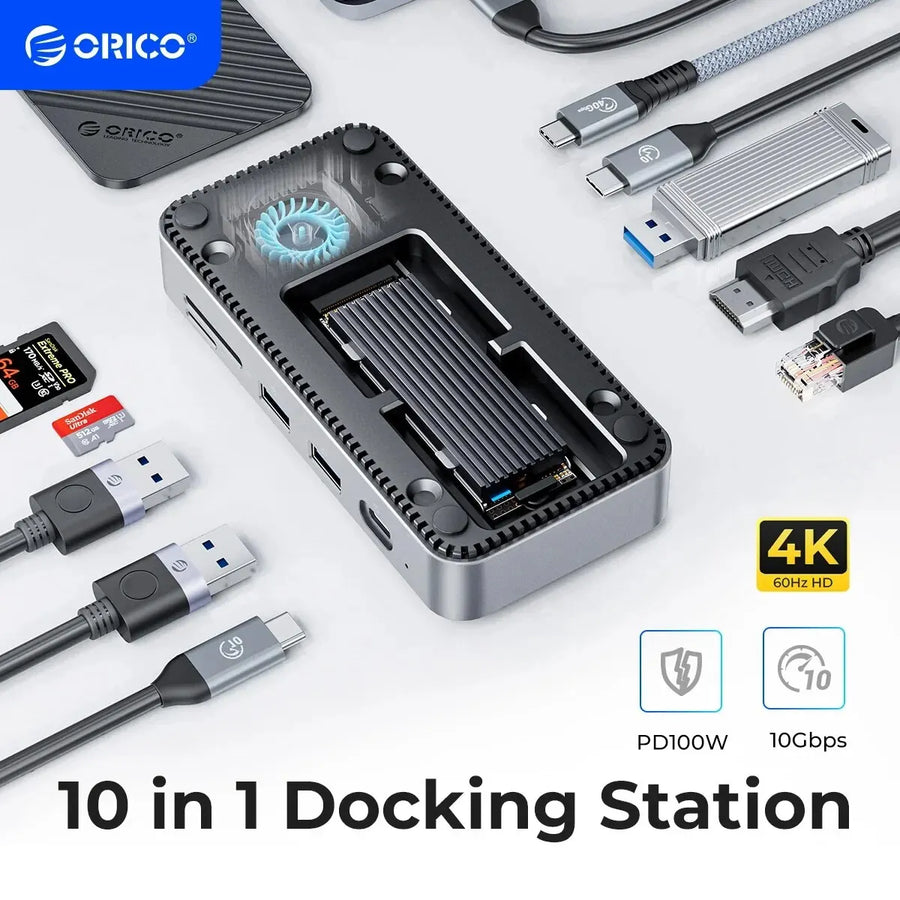

ORICO DPM2P9 USB C HUB with Cooling Fan M.2 NVMe SSD Enclosure External 10Gbps 4K,60Hz HDMI-Com, RJ45 SDTF Docking Station
Tiempo de entrega: 15 a 30 días hábiles
Envío desde China con número de tracking incluido
*Costo de envío se calcula al finalizar la compra
// ESPECIFICACIONES & DESCRIPCIÓN //
SPECIFICATIONS
Brand Name: Orico
Certification: CE
Choice: yes
Funtion: HDMI-Compatible/Card Reader/RJ45
High-concerned chemical: None
Interface Type: USB Type-C
Length: 50cm
Model Number: DPM2P9
Origin: Mainland China
Package: Yes
Plug Type: None
Ports: 10
Standard: USB 3.1
What interfaces are included?
M.2 NVMe/SATA Dual Protocol SSD Enclosure*1,1000Mbps Gigabit Ethernet port*1,4K/60Hz HDMI-Compatible ports*1,5Gbps USB3.0 ports*2,Type C power supply interface*1,100W Power Delivery port*1,10Gbps USB3.2 port*1,10Gbps USB-C port*1,SD Card Reader Slot*1,TF Card Reader Slot*1
Fast Heat Dissipation with Cooling Fan
Triple heat dissipation design: Aluminum alloy body, Aerodynamic duct design, with Cooling Fan,cooling vest and silicone thermal pad. Effective heat dissipation avoid speed reduction, data loss etc.
Suitable for Photographers and Video Editing Workers
This dock can be a great solution for a photographer working on location. Just populate the dock with a large nvme drive and maybe even connect a portable monitor and a great workstation can be set up to do some real work offloading photos from an SD/TF card and editing the photos for clients.A travel vlogger may find the same advantage in this product as well.(USB 3.0 SD/TF Card Reader Can be used simultaneously)
Suitable for entertainment and work
Personal users can also enjoy a good user experience on this product. If you are not satisfied with the impact of a small screen on viewing, you can use an HDMI-compatible video cable to link the monitor to your playback device, achieving even better results. If you are in an environment where the WiFi signal is weak or unstable, you can connect the network cable to the RJ45 port and then to the computer to obtain a stable network speed.
HDMI-compatible Port for 4K UHD Visual Feast
With this ORICO docking station, you can easily mirror or extend Type-c laptops, Macbooks, switches, and steam decks to external screens with 4K@60Hz displays. You can enjoy movies with your family on a larger screen or give lively presentations at meetings.
10Gbps Ultra Fast Data Transfer
The USB C hub is equipped with one USB A port and one USB C ports, as well as a built-in M.2 SSD slot, both supporting USB 3.2 Gen2 10Gbps speeds, which can transfer/return 1GB of video, music, photos and other files in just 1 second. There are also two USB 3.0 USB-A ports that support 5Gbps transfers.(PS: Due to the limitation of Apple M1 chip, the reading and writing speed is lower than that of non M1 chip computer)
PD100W Fast Charging
The 100W PD power may not be enough to charge a gaming laptop, it can charge most laptops with powerful cpus. With a single cable plugged into a laptop, charging, video, and storage are all connected.
Innovative Magnetic Tool-Free Installation
Magnetic upper cover closure design, makes installation easier. Strong magnetic force, not easy to fall off.
M.2 SSD Enclosure with Quick Capacity Expansion
This enclosure compatible with M.2 NVMe/SATA dual protocol SSD to expand digital space for your laptop and tablet. It support M-Key/B&M-Key interfaces of SSD and maximum support for 8T SSDs. It is suitable for SSDs of 4 different sizes (2280/2260/2242/2230 mm).
Q:Why does the connection keep interrupting after inserting the M.2 SSD?
A:When using a high-power device, in order to avoid the power of the input interface being too low, please make sure to connect a PD charger to ensure a stable connection.
Q:Why does the HDMI-compatible port not work properly? It cannot reach 4K?
A:First of all, make sure your device is supporting video output, then try to replace the host device/HDMI-compatible cable for testing. (The video output will be 4K if your device and HDMI-compatible cable support 4K resolution).
Q:Do both Type-C ports support 10Gbps transmission?
A:PD100W power supply interface does not support data transfer, can only be used as a laptop charging.
Q:Why is the speed not as fast as advertised?
A:The operating speed of the product is determined by the notebook, M.2 SSD, and USB port type. For the fastest read and write speeds, an NVMe SSD should be used, and the external enclosure for the M.2 SSD should be connected to a USB 3.1 GEN2 10G port.
Q:Why does it generate heat?
A:SSDs generate heat as they read and write at high speeds. The aluminum case of this product effectively transfers heat throughout the case, quickly releasing the high temperatures generated by NVMe SSDs when they are operating.
