Specification:

Dimensions: 86 x 61 x 17 mm

Weight: 116 g

DAC: ESS ES9069Q

Amplifier: Dual SGM8262

Platform: Ingenic X2000

System: MTouch developed by Shanling

Screen: 3.2-inch 320 x 480 Touchscreen

Memory: MicroSD card slot

Hi-Res Support: PCM 32 bit / 768 kHz & DSD512

Wi-Fi: 2.4/5G, supporting DLNA, Airplay and OTA Updates

Bluetooth: Upgraded 5.2 with Bi-Directional support of LDAC, aptX HD, aptX, AAC

Companion app: Eddict Player app through SyncLink

Connectors: 3.5mm Single-Ended, 4.4mm Balanced, USB-C

Battery: 2100 mAh

Battery life: Up to 12.5 hours

Single-Ended Output:

Power: 195 mW @ 32 Ohm

THD+N: 0.0007%

Channel Separation: 74 dB

SNR: 122 dB

Output impedance: 0.6 Ohm

Balanced Output:

Power: 660 mW @ 32 Ohm

THD+N: 0.0007%

Channel Separation: 100 dB

SNR: 122 dB

Output impedance: 1.2 Ohm

Features:

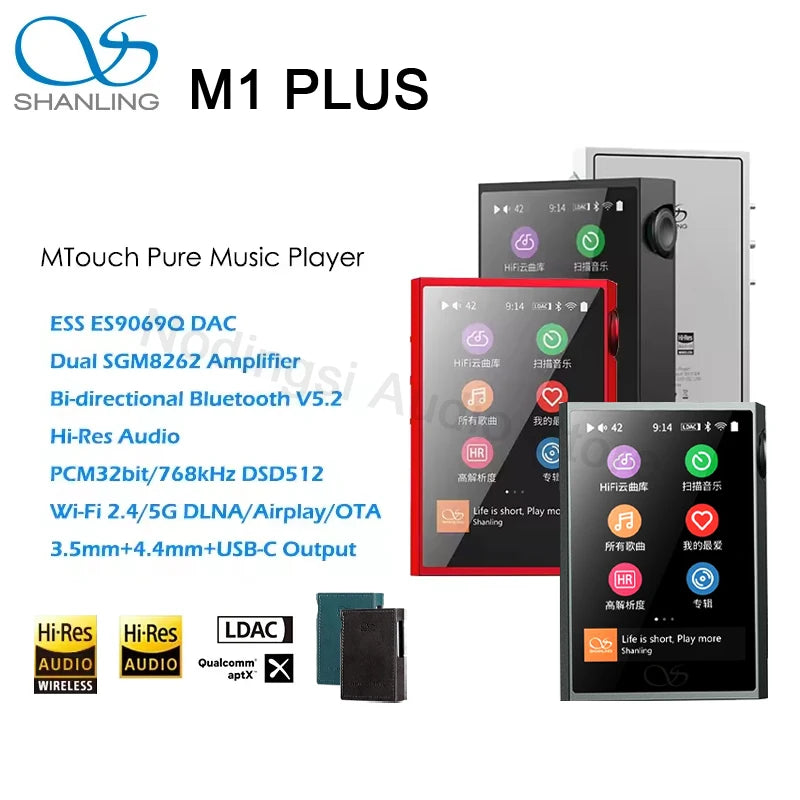

Introducing Shanling M1 Plus.

Earlier this year, we released Shanling M5 Ultra. Marking our return to simpler players using MTouch system with a full focus on pure music playback.

Today we are announcing Shanling M1 Plus. A cheaper and smaller sibling to the M5 Ultra.

Utilizing the latest MTouch system on Ingenic X2000 processor, M1 Plus offers our standard rich package of features. Including Bi-directional Bluetooth V5.2, two-way USB Connection, 3.5mm Coaxial SPDIF Out, Wi-Fi connectivity for DLNA/Airplay and smooth local playback with expandability of MicroSD cards.

Sandwiched into a compact body made of aluminium and glass, adapting the bolder modern design revealed with M5 Ultra and measuring just 86 x 61 x 17mm at only 116 grams. With 3.2-inch screen for ideal balance between touch screen controls and compact size for daily use.

Audio circuit based around ESS ES9069Q DAC for dynamic and detailed sound, accompanied by a pair of SGM8262 amplifiers which provide up to 660 mW @ 32 Ohm output power to decently power even full-size audiophile headphones. With 4.4mm balanced and standard 3.5mm for easy matching with all the earphones and headphones on the market.
