SPECIFICATIONS

Bluetooth specification: 5.1(support SBC,AAC,aptX,aptX HD,LDAC)

Brand Name: S.M.S.L

High-concerned chemical: None

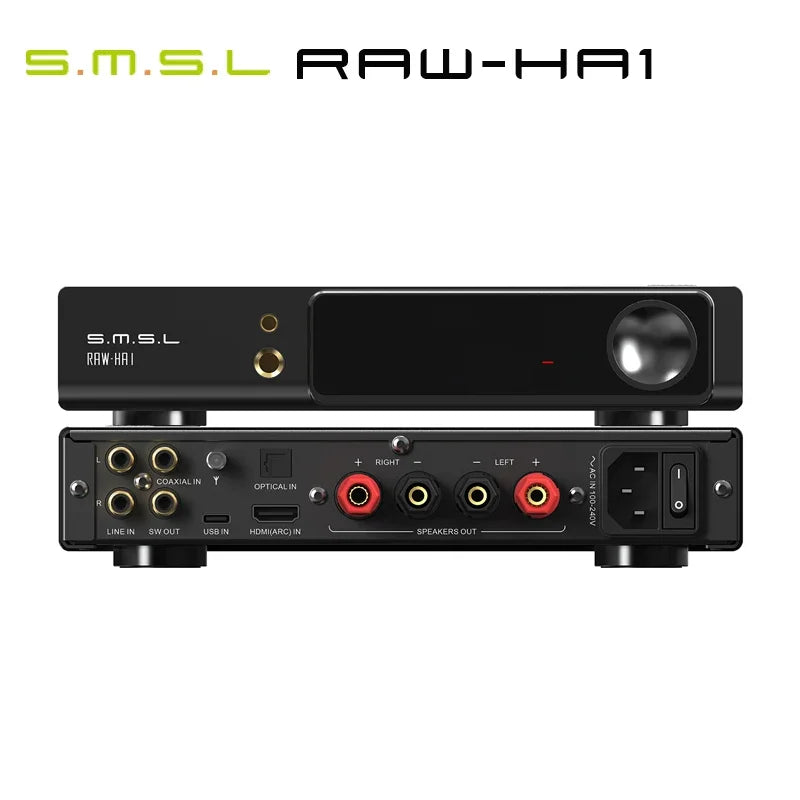

Input: HDMI(ARC/RCAVBT/USB/Optical/Coaxial

MQA decoder: USB/Optical/Coaxial

MQA-CD decoder: Optical/Coaxial

Maximum Power Per Channel: 131-200W

Model Number: HA1

Origin: Mainland China

Package: Yes

Power Consumption: 40W(Normal Volume)

Size: 219X45X190mm(WxHxD)

USB transmission: USB2.0(Asynchronous Transfer)

Weight: 1.55kg/3.42lbs

Advanced Processing

Featuring advanced processing capabilities, this amplifier ensures smooth and precise audio playback.

Powerful Output

Output Power：stereophonic
4Ω：165Wx2
8Ω：85Wx2

Bluetooth 5.1 Connectivity

Stay connected and enjoy wireless freedom with Bluetooth 5.1, supporting LDAC, APTX/HD, and SBC for high-quality audio streaming.

Compact Design

The compact design of the amplifier makes it easy to integrate into any home theater system without taking up too much space.

High-Resolution Audio Support

Experience unparalleled audio quality with support for MQA MQA-CD and DSD256, ensuring a rich, immersive sound experience.

SPEC:
Input：HDMI(ARC/RCAVBT/USB/Optical/Coaxial
THD+N：0.003%
SNR：108dB
Channel separation：87dB
Input Sensitivity / Input Impedance：245mV/22kΩ
Output Power：stereophonic
4Ω：165Wx2
8Ω：85Wx2
USB transmission：USB2.0(Asynchronous Transfer)
USB compatibility：Windows7 /8/8.1/ 10/ 11, Ma c OSX, Linux
MQA decoder：USB/Optical/Coaxial
MQA-CD decoder：Optical/Coaxial

Bit Depth
USB：1bit, 16~32bit
Optical/Coaxial：1bit, 16~24bit

Sampling rate：
USB
PCM44.1~768kHz
DSD2.8224~11.2896MHz

Optical/Coaxial
PCM44.1~192kHz
DSD DSD64([DoP)

Bluetooth specification：5.1(support SBC,AAC,aptX,aptX HD,LDAC)
Power Consumption：40W(Normal Volume)
Size：219X45X190mm(WxHxD)
Weight：1.55kg/3.42lbs
