SPECIFICATIONS

Bluetooth: Yes

Brand Name: S.M.S.L

D/A Converter: ES9039Q2M

DSD Sampling Frequencies: 2.8224 MHz (DSD64),5.6448 MHz (DSD128),11.2896 MHz (DSD256),22.5792 MHz (DSD512)

Dimensions (W x H x D): 189*45*179mm

High-concerned chemical: None

Input: USB/Coaxial/Optical/Bluetooth

Inputs: USB Type-B,Optical (SPDIF),Coaxial

MQA decoder: USB/Optical/Coaxial

Material: Metal

Model Number: RAW-MDA1

Origin: Mainland China

Output: RCA/XLR/HEADPHONE

Outputs: RCA,XLR

PCM Sampling Frequencies: 44.1 kHz,48 kHz,88.2 kHz,96 kHz,176.4 kHz,192 kHz,352.8 kHz,384 kHz,705.6 kHz,768 kHz

PCM Word Length: 16-bit,24-bit,32-bit

S.M.S.L Model: RAW-MDA1

Size: 189x45x179mm(WxHxD)

Type: Desktop

USB transmission: Asynchronization

Weight: 1.02kg/2.24lbs

Bluetooth 5.1 Connectivity

Enjoy seamless wireless audio streaming with Bluetooth 5.1, ensuring stable connections and high-fidelity sound.

Metal Construction

Crafted with durability in mind, this Desktop DAC features a robust metal build for long-lasting performance.

Remote Control Included

Convenience at your fingertips with the included remote control, allowing easy adjustment of settings without reaching for your device.

High-Resolution Audio Support

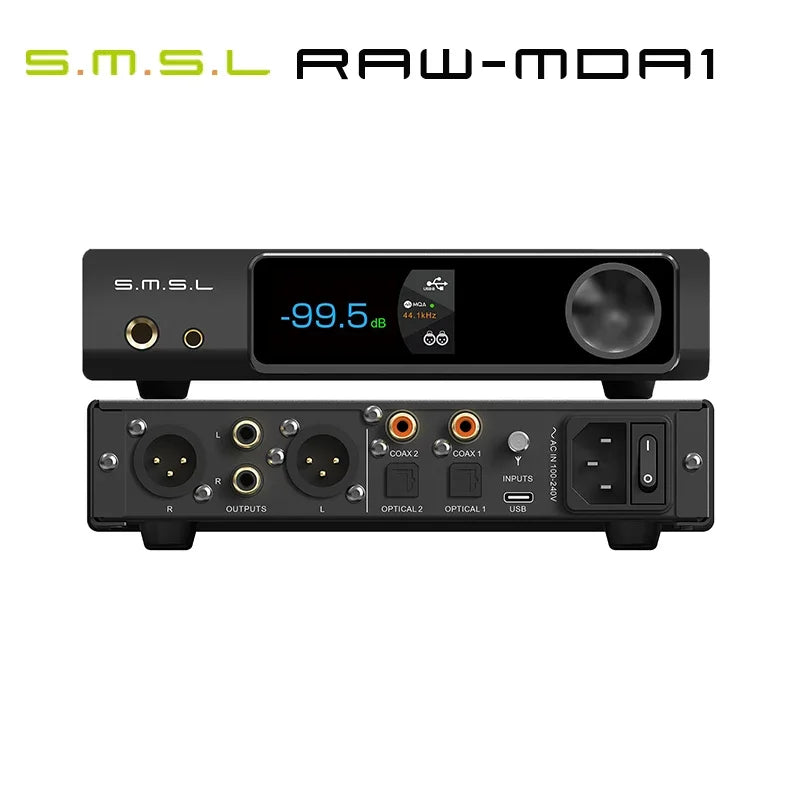

Experience unparalleled sound quality with the SMSL RAW-MDA1 Dual ES9039Q2M Decoder, supporting MQA MQA-CD LDAC Bluetooth 5.1 Hi-res DAC.

Specifications
Input USB/Optical x2/Coaxialx2/Bluetooth
Output RCA/XLR/HEADPHONE
THD+N 0.00005%(-124.5dB non-Weighting)
Line output amplitude XLR—5.2Vrms、RCA—2.5Vrms、HP—8.2Vrms
Headphone output power 16Ω—2.5Wx2、32Ω—1.7Wx2
Output lmpedance LINE OUT—100Ω、HP OUT—Near 0Ω
Dynamic range XLR—132dB、RCA—127dB、HP—122dB
SNR XLR—132dB、RCA—127dB、HP—122dB
USB transmission Asynchronization
USB compatibility Windows7/8/8.1/10/11(Needs Driver)、Mac OSX10.6 or Later、 Linux(Driverless)
MQA decoder USB/0ptical/Coaxial
Sampling rate & Bit Depth USB：PCM 44.1~768kHz(32bit)、DSD 2.8224~22.5792MHz(1bit)、DoP DoP256
Sampling rate & Bit Depth Optical /Coaxial：44.1~192kHz(24bit)、DoP DoP64
Bluetooth specification 5.1(Support SBC,aptX,aptX HD,LDAC)
Power Consumption <30W
Standby power ＜0.5W
